The Ultimate Draft
Where pump testing
MEETS TECHNOLOGY.

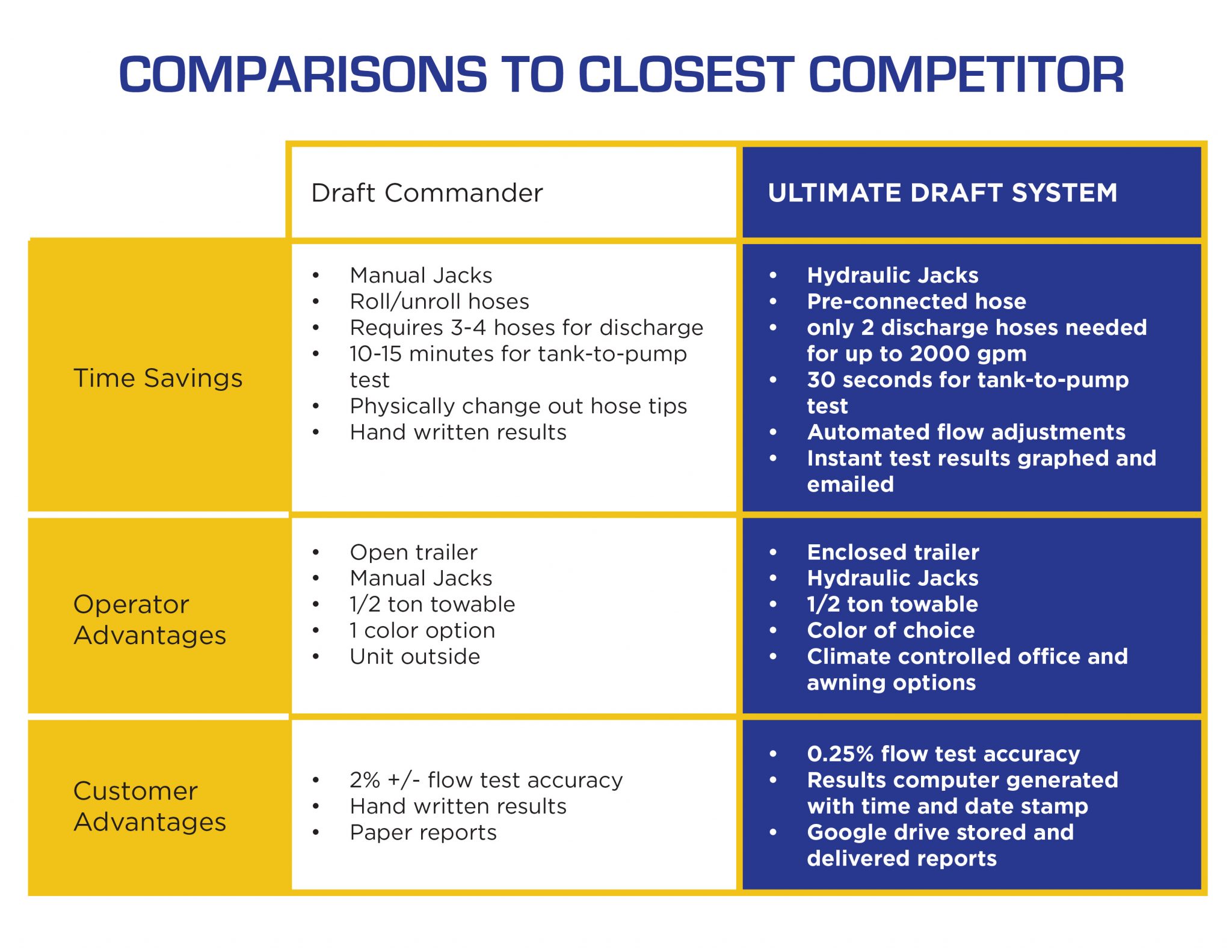

This incredible machine has tested over 5,000 pumps and flowed 350 million gallons of water. The primary advantages that we have over our competitors include:
Quick and Easy 15 minute setup
minutes to complete a test
7 tests in an 8 hour day
only needs one operator + wireless control
Pumps Tested since 2017
million gallons cycled through our closed loop system
System Specs
The system’s 2500 gallon tank is baffled to dissipate turbulence while its unique direct water injection design eliminates aeration. The system can operate on 120 volts and 15 amps. The system’s flow accuracy is at 0.25% of 1500 GPM (or 4 GPM of 1500 GPM) and has the ability to create intake workload on any size pump with only one size hose. The system is 100% automated with the capability to be wirelessly controlled from a tablet or smartphone, meaning program changes and troubleshooting can be done from anywhere.
Trailer Specs

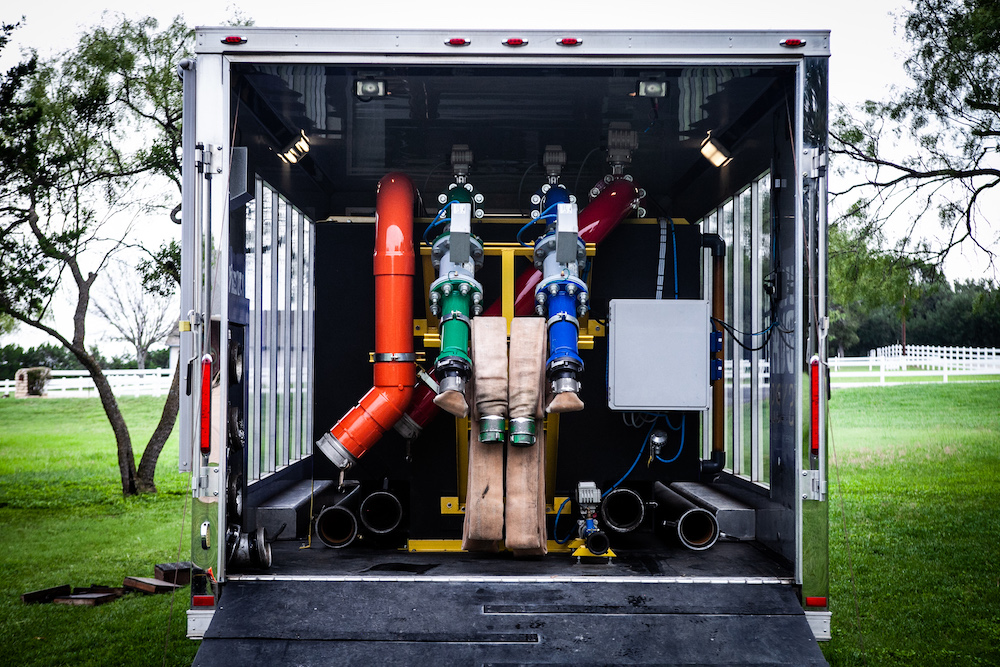

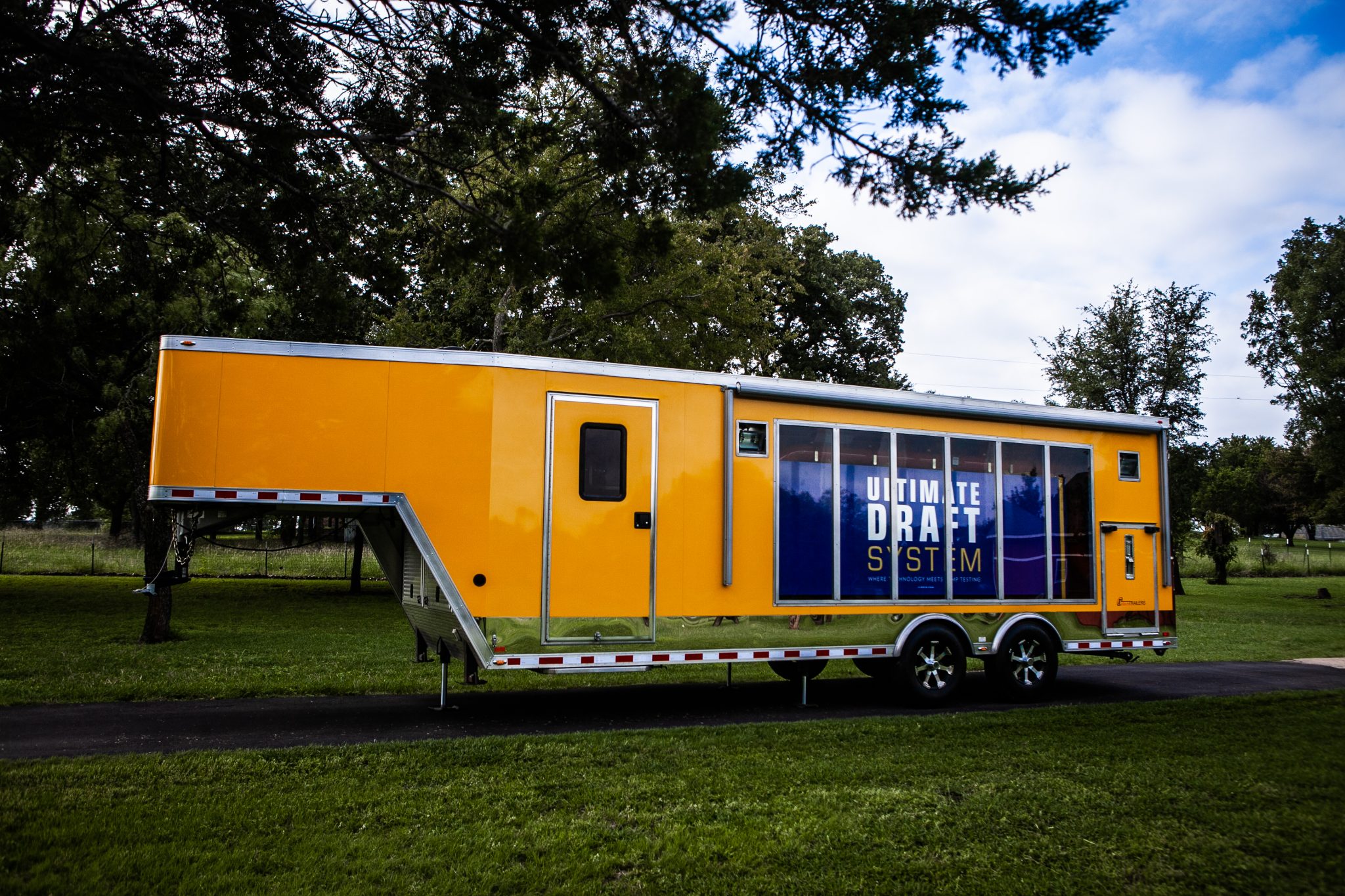

The Ultimate Draft System can be contained in a custom built all- aluminum trailer in either a gooseneck or bumper pull model. The trailer features an indoor control room with built-in desk and lower cabinets. The hydraulic jack system makes setup fast and easy for one person, even at an uneven testing location. Stationary options include using a conex box to house your system or have us build a system that utilizes an existing pit.
Capabilities
- Instant flow readings make performing all portions of a test easy and quick
- Diagnose vacuum leaks on the intake side of a pump
- Determine if a pump is discharging water from an unexpected location
- The only system measuring intake flow, helping diagnose specific problems.
- NFPA 1962 Nozzle testing capable option
- Redundant testing conditions
- Used for any centrifugal pump
- Measures maximum capacities of pumps under differing conditions
- Optional program to create any pump operator scenario for training purposes
